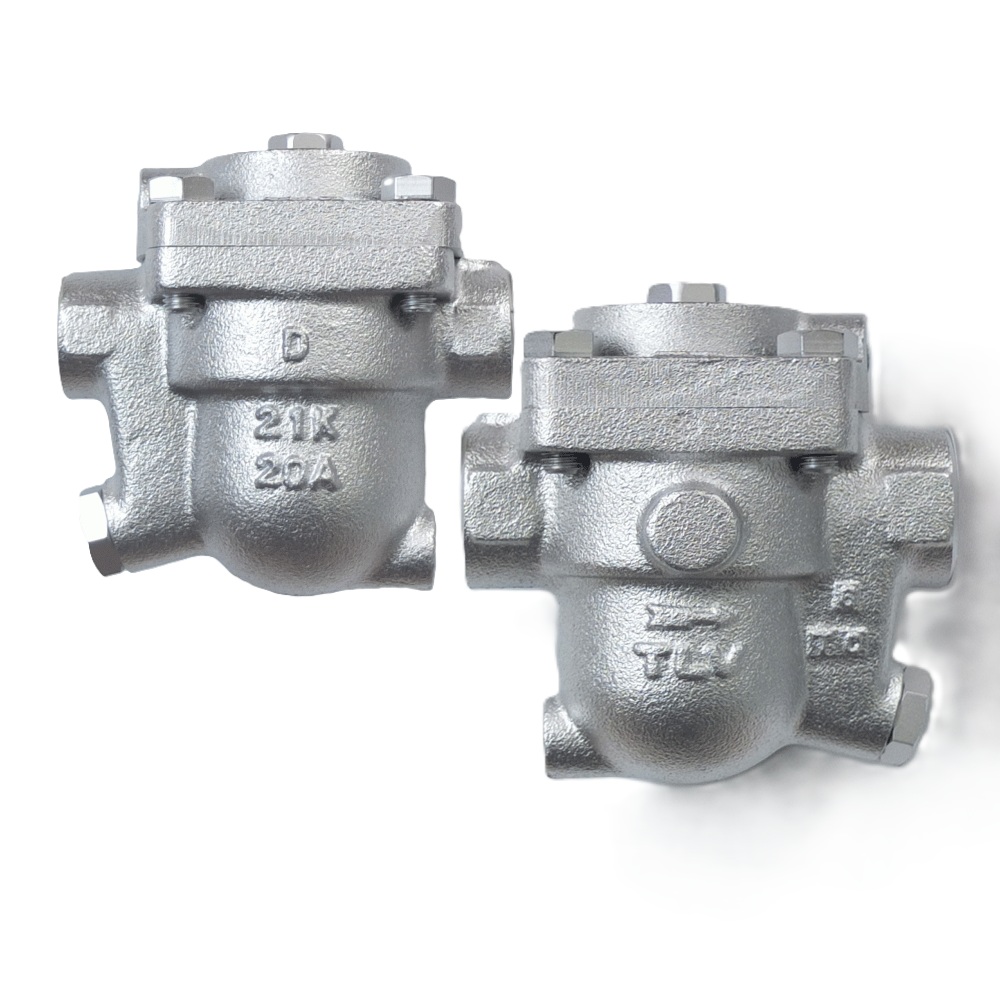

TLV J3X Free Float Steam Trap

Introduction

The TLV J3X Free Float Steam Trap is one of TLV's most renowned mechanical free float steam traps, engineered and manufactured in Japan. It is specifically designed for continuous and automatic condensate removal in industrial steam systems.

Unlike thermodynamic disc steam traps or inverted bucket steam traps, the J3X utilizes TLV's patented Free Float technology. A precision-machined spherical float rises and falls freely with the condensate level, providing continuous condensate discharge while minimizing live steam loss.

Thanks to its outstanding energy efficiency, long service life, and reliable operation, the TLV J3X is widely used in food processing plants, pharmaceutical facilities, chemical industries, textile mills, paper manufacturing, rubber factories, power plants, and many other industrial steam applications.

Technical Specifications

Note: Maximum operating pressure and temperature vary depending on the specific model (J3X-10, J3X-16, J3X-21, etc.).

Construction

The TLV J3X Free Float Steam Trap consists of the following major components:

• Valve body

• Precision stainless steel free float

• Valve seat

• Automatic air vent

• Built-in strainer

• Cover

• Sealing gasket

Its simple yet highly precise internal design minimizes wear, extends service life, and reduces maintenance requirements.

Operating Principle

The TLV J3X operates according to the condensate level inside the trap.

As condensate accumulates, the stainless steel float rises naturally, opening the discharge orifice and allowing condensate to flow out continuously.

When the condensate level decreases, the float lowers and automatically closes the valve seat, preventing valuable live steam from escaping.

An integrated automatic air vent releases air and non-condensable gases during system start-up, ensuring rapid heating and improved heat transfer efficiency.

Features and Benefits

Continuous Condensate Discharge

Provides continuous drainage without condensate backup, maximizing heat transfer efficiency.

Excellent Steam Sealing Performance

The patented Free Float mechanism effectively prevents live steam leakage, reducing energy consumption and operating costs.

Long Service Life

The spherical float has no hinges, levers, or complex linkages, minimizing wear and ensuring exceptional durability.

Built-in Automatic Air Vent

Quickly removes air and non-condensable gases during start-up, improving system performance.

Stable Operation

Performs reliably even under varying condensate loads and fluctuating operating conditions.

Easy Maintenance

Compact construction with an integrated strainer simplifies inspection and maintenance.

Applications

The TLV J3X Free Float Steam Trap is ideal for:

• Heat exchangers

• Unit heaters

• Steam dryers

• Sterilizers

• Steam distribution lines

• Steam presses

• Food processing equipment

• Pharmaceutical manufacturing equipment

• CIP (Clean-in-Place) systems

• Industrial process heating equipment

Why Choose TLV?

TLV is recognized globally as a leading manufacturer of steam engineering products, with decades of expertise in steam system optimization.

TLV products are known for:

• Patented Free Float technology

• Superior thermal efficiency

• Outstanding energy savings

• Long service life

• Reliable performance

• Complete spare parts availability

• Trusted by thousands of industrial facilities worldwide

Installation Recommendations

For optimal performance:

• Install according to the flow direction indicated on the valve body.

• Install at the lowest point of the equipment where condensate naturally collects.

• Install isolation valves before and after the steam trap for easier maintenance.

• Clean the built-in strainer regularly.

• Inspect the automatic air vent during scheduled maintenance.

TLV J3X Free Float Steam Trap Price

The price of the TLV J3X Free Float Steam Trap depends on several factors, including:

• Model (J3X-10, J3X-16, J3X-21, etc.)

• Nominal size

• BSPT or NPT threaded connection

• Pressure rating

• Order quantity

• Current import costs

Please contact us for the latest pricing, technical documentation, and product availability.

Where to Buy Genuine TLV J3X Free Float Steam Traps?

THEGIOIVAN.NET is a trusted supplier of genuine TLV steam traps for a wide range of industrial steam applications throughout Vietnam.

We provide:

• 100% genuine TLV products

• Complete CO & CQ certificates

• Competitive pricing

• Professional technical consultation

• Assistance in selecting the correct model

• Fast nationwide delivery

• Manufacturer's warranty

If you are looking for a genuine TLV J3X Free Float Steam Trap, contact THEGIOIVAN.NET today for expert advice and the best quotation.
